    Product introduction

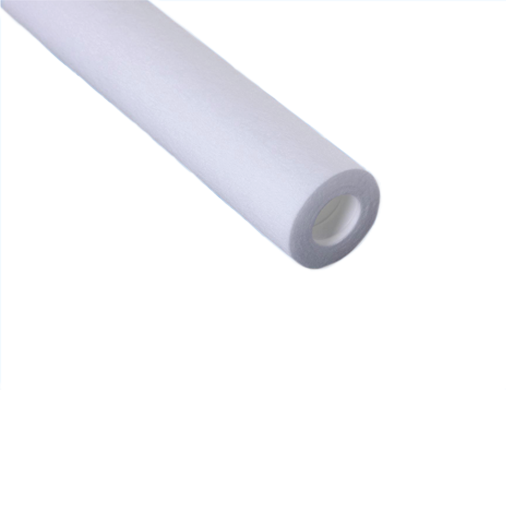

    Product name:Melt-blown filter element
    Production process:
    Material:

    PP: polypropylene

    Product introduction:

    Economical filter element, suitable for water treatment, light load meltblow filter element is composed of four kinds of polypropylene material with different fiber fineness, the inner fiber is finer, the outer fiber is thicker, in order to achieve the effect of layered filtration of impurities in the liquid, can effectively increase the filter element pollution capacity, prolong the service life of the filter element, reduce the cost of consumable replacement, product filtration efficiency is high, acid and alkali resistance, It can more effectively remove impurities such as suspended matter, particles and rust in the liquid. Light load meltjet filter element is an economical filter element, which is effective for water treatment in various industrial environments. It can be widely used in different water treatment applications such as traditional electroplating bath bath filtration, industrial pure water pre-filtration, low viscosity chemical liquid clarification filtration, recycled water filtration and so on.

    Product features
    Four-layer structure filter element, the outer layer filter large impurities, prolong the service life, the inner layer filter small impurities, to ensure the filtration accuracy
    Fine pure PP fiber material manufacturing, high filtration precision, good chemical resistance
    Large filtration flow, strong contaminant capacity
    Optional spiral welded internal skeleton ensures adequate strength of filter element, especially suitable for high pressure differential filtration environment
    A variety of materials with good chemical compatibility can be selected for various liquid filtration needs
    A variety of filter length and outside diameter can be selected to meet the needs of different filter areas
    Product parameters
    Available in size

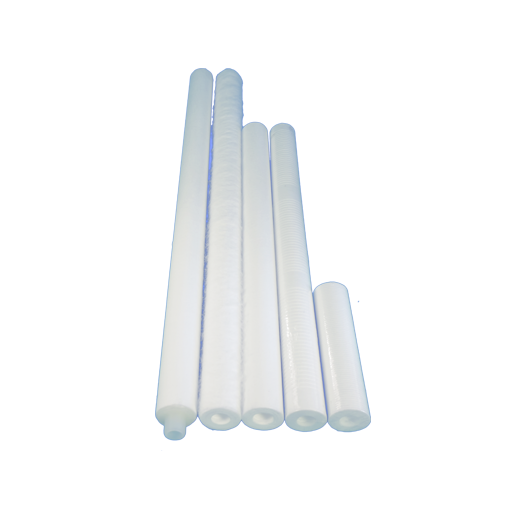

    10 inches, 20 inches, 30 inches, 40 inches

    Selectable accuracy (microns)

    1,5,10,25,50,75,100

    Technical parameters

    Withstand pressure: ≤0.5bar Use pressure drop: 0.2bar Operating temperature: Polypropylene: polypropylene skeleton ≤70℃; Stainless steel skeleton ≤90℃

    Application industry

    Ink

    Food and beverage

    Paint

    Electroplating

    Circuit board

    Electronics industry

    Liquor

    Petrochemical industry

    Edible oil

    Oil paint
